Sykes MH300i
A 12" high-capacity pump engineered for mining and municipal operations, delivering up to 510 L/sec with solids handling up to 90 mm and a CAT C13 diesel engine for continuous duty.
- Automatic self-priming single-stage centrifugal pump delivering up to 510 L/sec
- Handles solids up to 90 mm with a semi-open impeller
- High-capacity pumping with excellent hydraulic efficiency
- 316 stainless steel wetted internals for outstanding corrosion resistance
- Heavy-duty structural steel skid with galvanised lifting frame
- Double hard-faced cartridge mechanical seal with oil lubrication for extended service life
- CAT C13 diesel engine delivering dependable performance for continuous operation
- Built for demanding mining, construction and industrial applications
Thanks for your enquiry. We'll be in touch shortly.
Oops! There was an error with your submission.
Ideal for
- Large-scale construction dewatering
- Mining and quarry operations
- Sewage and wastewater bypass
- Industrial pumping
- High-volume water transfer
- Oil and gas projects
- Agricultural water transfer
- Rental fleet applications

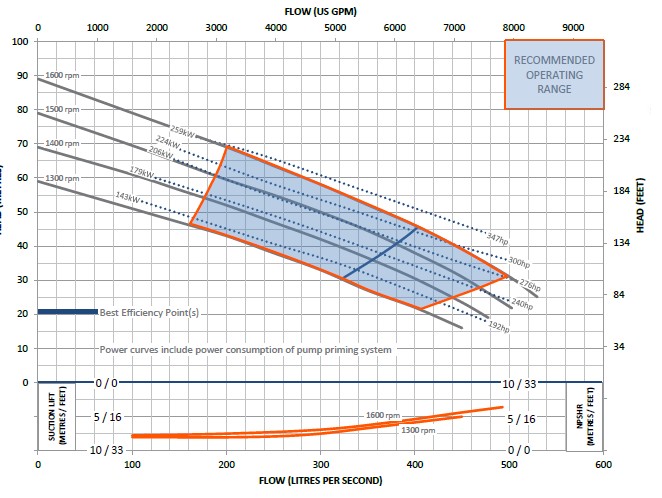

Performance Specs
- Max Flow: 510 L/sec
- Max Head: 89 m
- Solids Handling: 90 mm
- Suction: 300 mm (12")
- Discharge: 300 mm (12")
- Impeller: 2-vane Semi-Open
- Priming: Automatic Self-Priming
Technical Specs
- Engine: CAT C13 Diesel
- Fuel Tank: 2,100 L
- Fuel Consumption: 56 L/hr @ BEP (1,600 rpm)
- Dry Weight: 7,419 kg
- Wet Weight: 9,204 kg
- Shaft Diameter: 75 mm
- Construction: 316 Stainless Steel (CF8M) Wetted Internals
- Mechanical Seal: Oil-lubricated double hard-faced cartridge seal
